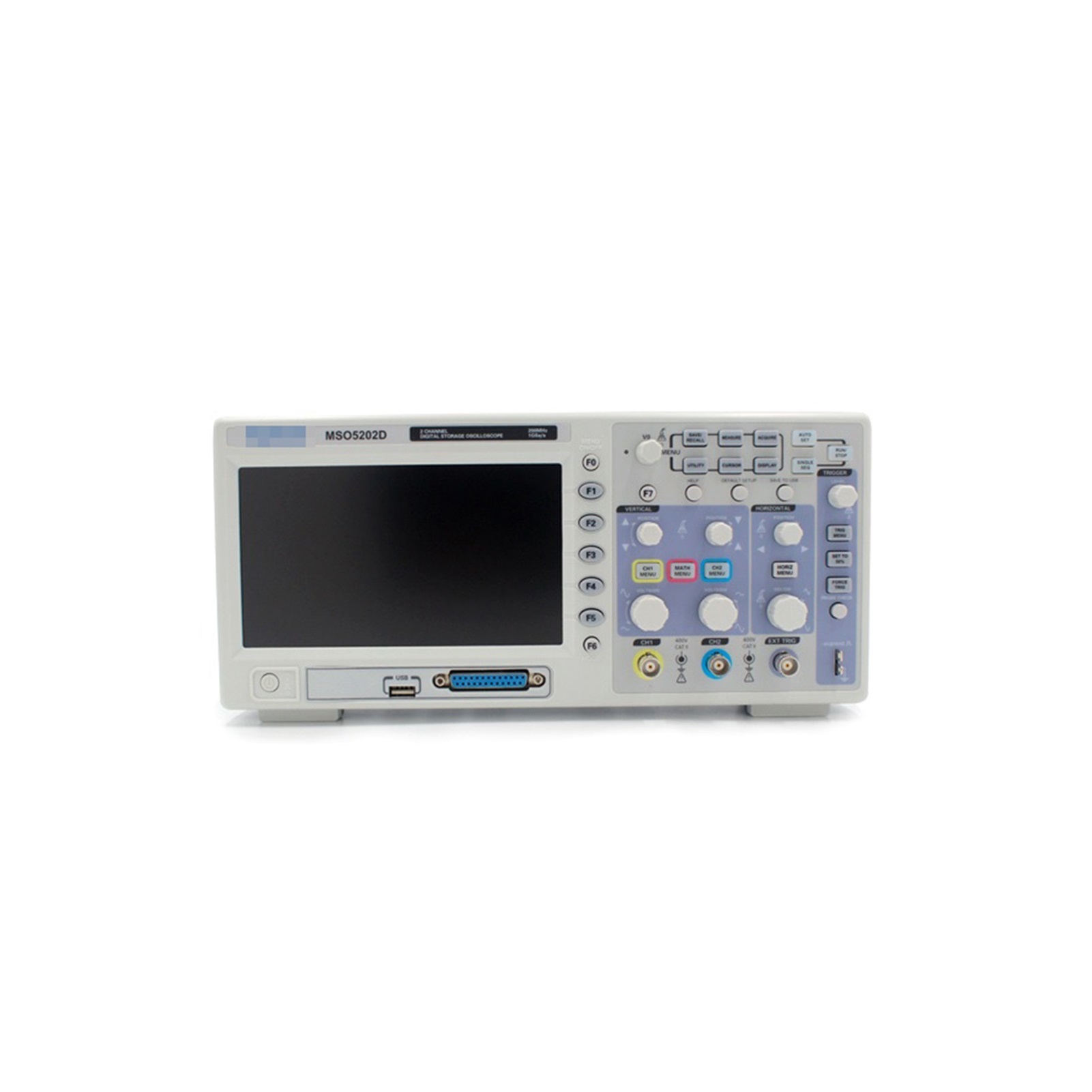

MSO5202D Digital Oscilloscope Portable 200MHz USB Osciloscopio +16Channel Logic Analyzer

<p>This is a logic analyzer product with high cost performance. </p><p>Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.</p><p>The signal could be analyzed with many standard protocols, to get more straightforward communication data.</p><p>It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.</p><p>Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability</p>

• MSO520D Digital Oscilloscope 200MHz 2Channels 1GSa/s Real Time sample rate USB host and device connectivity 7 Inch +16 channels logic analyzer+external trigger
• 16 channels logic analyzer + 2 channels oscilloscope + external trigger.
• Big and clear (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform.
• 1GSa/s real time sampling rate.
• USB host, support flash memory card storage and USB interface system upgrade.
• Ultrathin design, handy volume, easily portable.
• Oscilloscope Function:
• Bandwidth 200MHz.
• Each channel record length up to 1M.
• Real time sampling rate up to 1GSa/s.
• Powerful trigger function.
• 32 kinds of automatic measurement function.
• Logic Analyzer Function:
• 16 channels divided into 2 groups which is able to setup threshold level individually.
• Real time sampling rate up to 500MSa/s.
• Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat
